BC Fiber
| Fiber Connector | LC/APC | LC/UPC | |||||||
| Connector Gender | Fixed Male to Female | Fixed Male to Female | |||||||
| Attenuation | 25dB | 1-25dB | |||||||
| Attenuation Accuracy | ±10dB | 1-9dB ±0.5dB, 10-25dB ±%10 | |||||||
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | |||||||
| Humidity | 95%RH | 95%RH | |||||||
| Storage Temp Range | -40~85°C | -40~85°C | |||||||
| Ferrule Type | Zirconia Ceramic | Zirconia Ceramic | |||||||
| Transfer Mode | SM/MM | SM/MM | |||||||
| Operating Wavelength(nm) | 1260~1620(SM),850 or 1330 (MM9 | 1260~1620(SM),850 or 1330 (MM9 | |||||||
| Return Loss | ≥65dB | ≥55dB | |||||||
| Max Optical Input Power | 200mW | 200mW | |||||||
| Operating Temp Range | -40~80°C | -40~80°C | |||||||

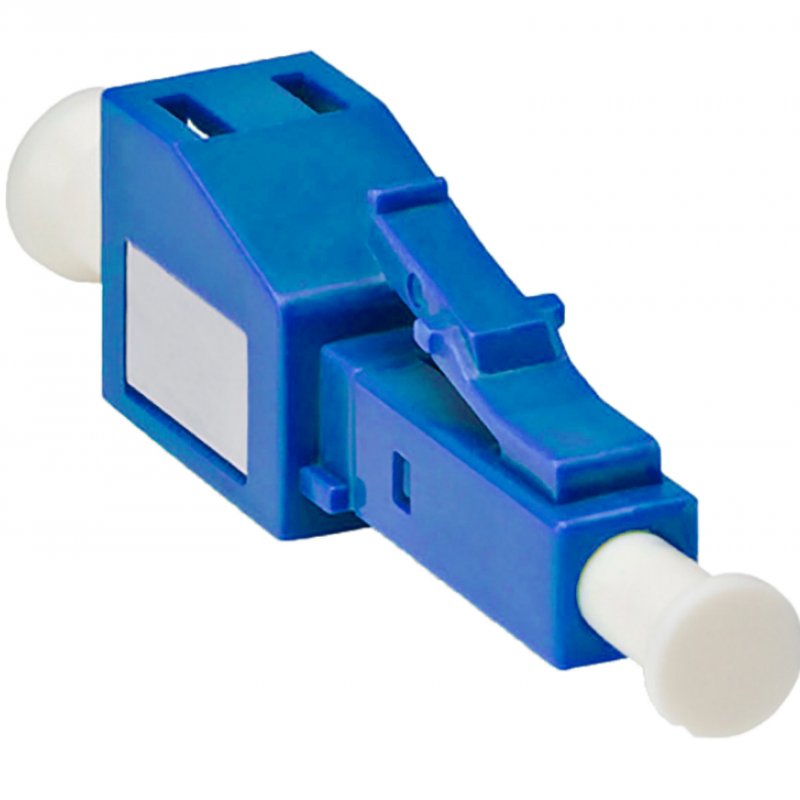

Yes, LC Attenuator is made as signal reducer.
LC Attenuator can be used on the system where signal attenuation is desired.
LC Attenuators shape is not like patchcord, is like adapter.
