Multimode OM 3 Pigtail

BC Fiber

Home Page Fiber Optic Products Pigtails Multimode OM 3 Pigtail

BC Fiber

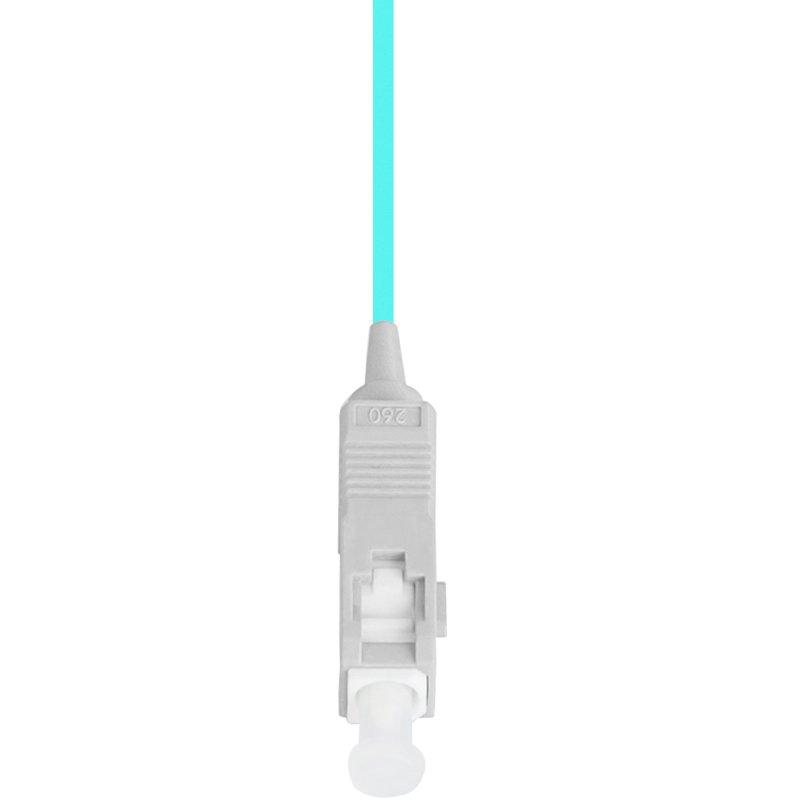

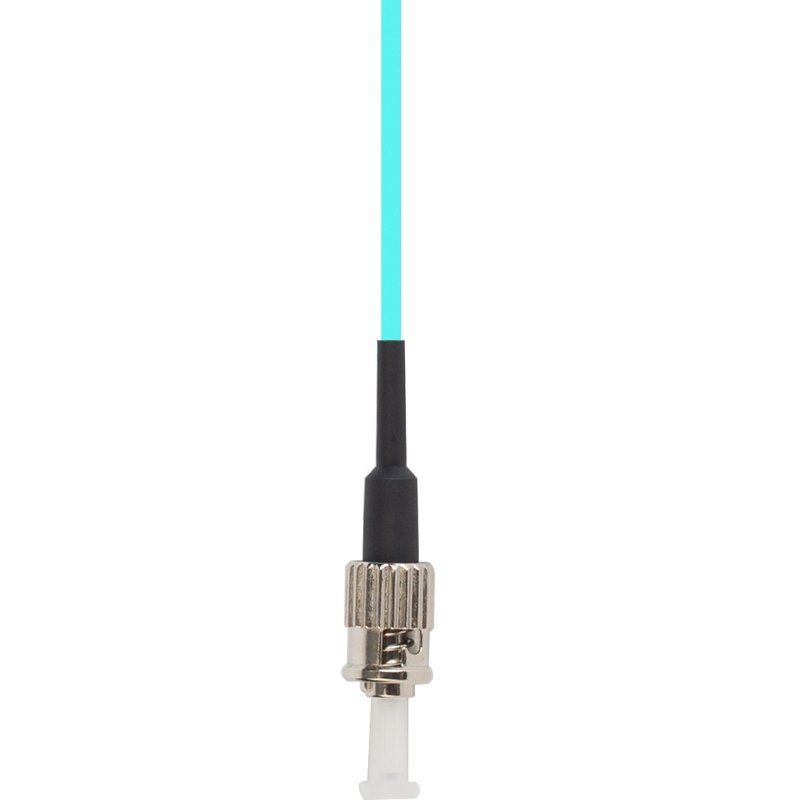

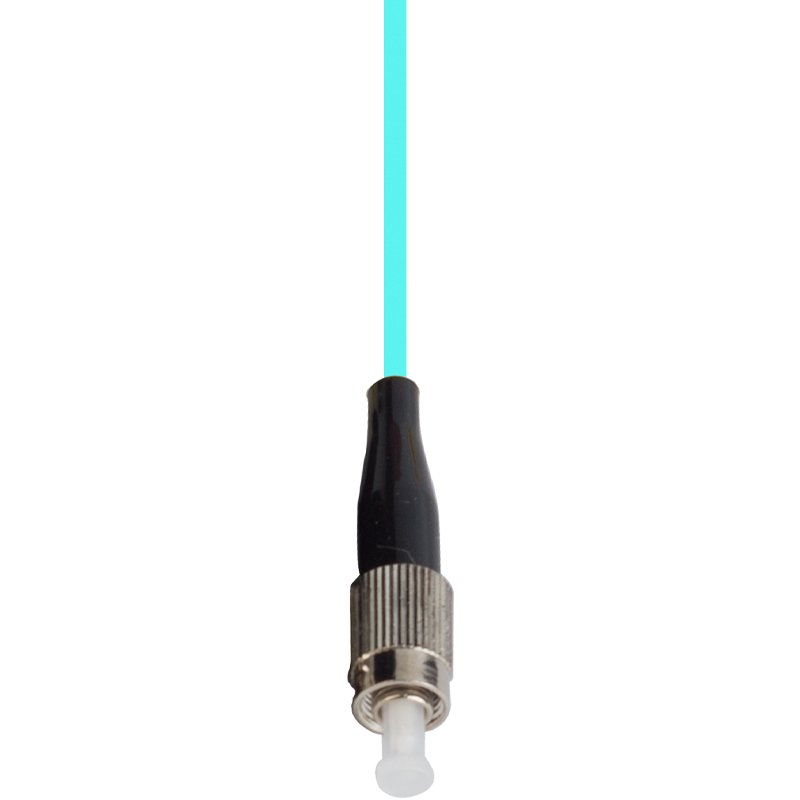

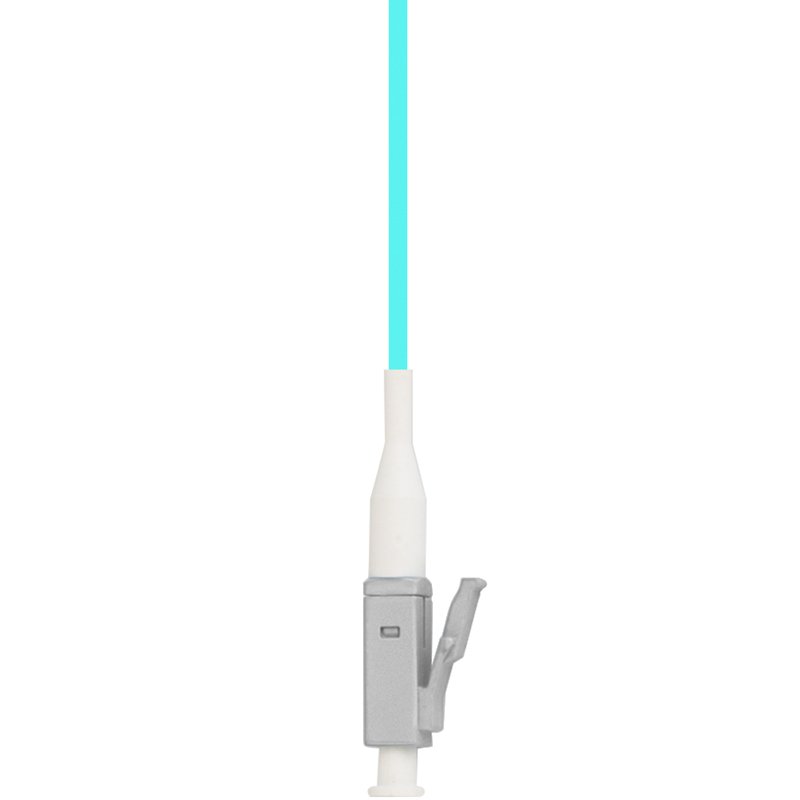

Connector LC / SC / FC / ST DUBLEX       Singlemode
Polishing           UPC
Return loss           ≥ 45 dB
Insertion loss           < 0.25 dB (IEC Grade B )
Length           1.5 m / 2.0 m
Sheath material           LSZH, UL-94 V0
Ferrule material           Ceramic (zirconia)
Ferrule diameter           1,25mm / 2,5 mm
Temperature range         -20 °C to +60 °C
Outer diameter           900±5 μm
Bending radius (static)         30 mm
Attenuation @ 850 / 1300 nm (dB/km)       ≤ 3,2 / ≤ 0,8
Attenuation @ 1310 / 1383 / 1550 nm (dB/km)

OM3 Pigtail standard length is 1m and 1.5 meters.

OM3 Pigtail is LSZH.

OM3 Pigtail's color is turquoise.
