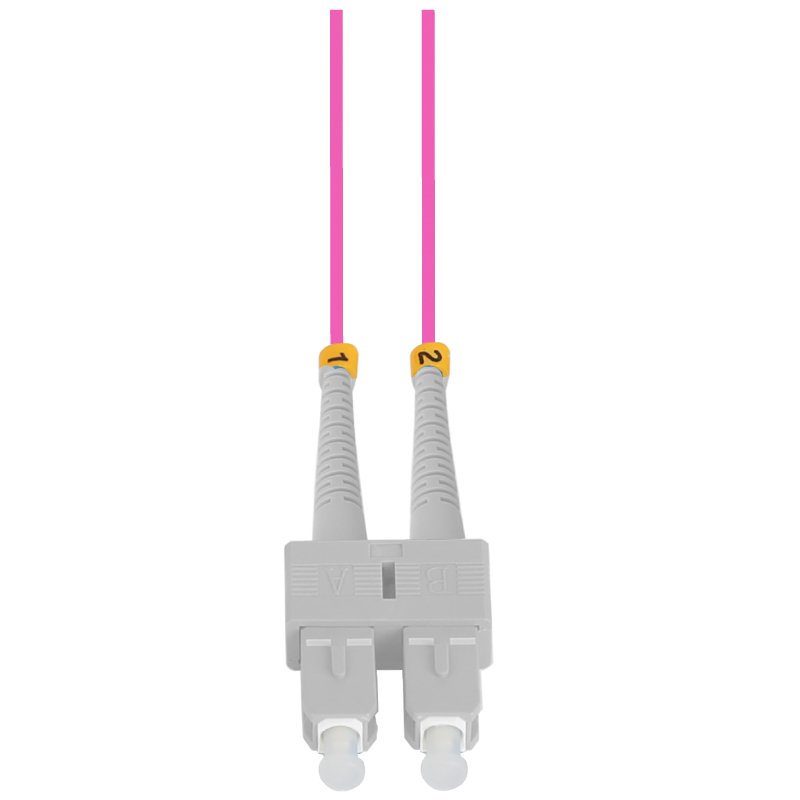

Multimode OM 4 Patch Cord

BC Fiber

Home Page Fiber Optic Products Patch Cord Multimode OM 4 Patch Cord

BC Fiber


Connector LC / SC / FC / ST       Singlemode
Polishing           UPC
Return loss           ≥ 20 dB
Insertion loss           ≤ 0,30 dB (typical)
Ferrule material           Ceramic (zirconia)
Ferrule diameter           1.25 mm / 2.5 mm
Insertion / extraction cycles         Min. 1000

Cable Mechanical Properties
Cabled optical fiber         OM4
Nominal diameter core / sheath       50 / 125 μm
Color           Purple
Outer diameter           1.6 mm to 3 mm
Sheath material           LSZH, UL-94 V0
Bending radius (static)         45 mm
Temperature range         -20°C +70°C
Attenuation @ 850 / 1300 nm (dB/km)       ≤ 3,2 / ≤ 0,8
Attenuation @ 1310 / 1383 / 1550 nm (dB/km)     ≤ 0,4 / ≤ 0,4 / ≤0,4

MULTIMODE OM4 Patchcord is LSZH.

MULTIMODE OM4 Patchcord diameter is 2 mm.

The maximum loss of dB of MULTIMODE OM4 Patchcord is 0.05 dB.
