Multimode OM 1 Pigtail

BC Fiber

Home Page Fiber Optic Products Pigtails Multimode OM 1 Pigtail

BC Fiber

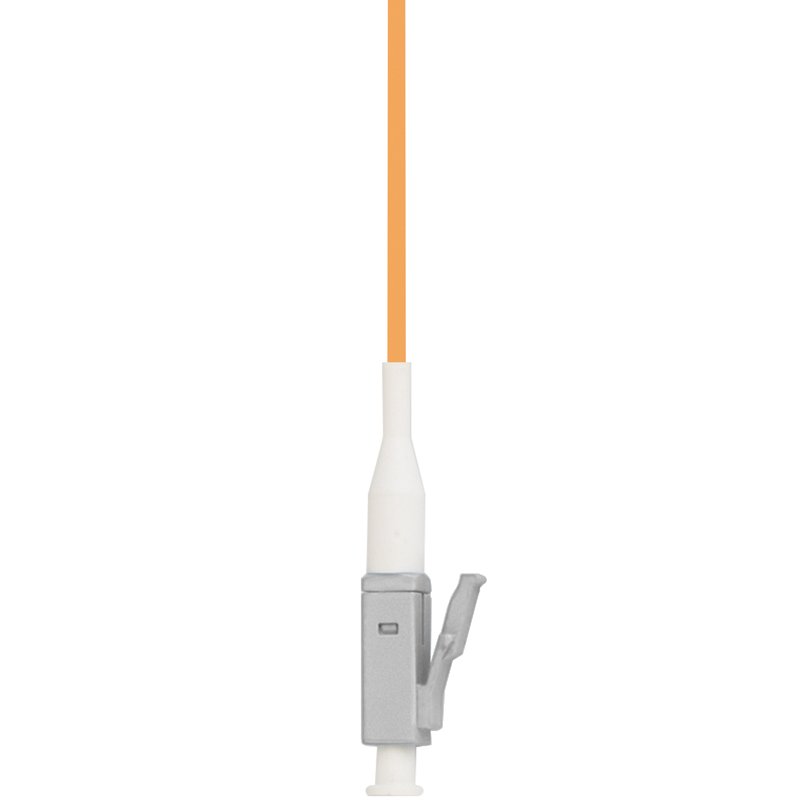

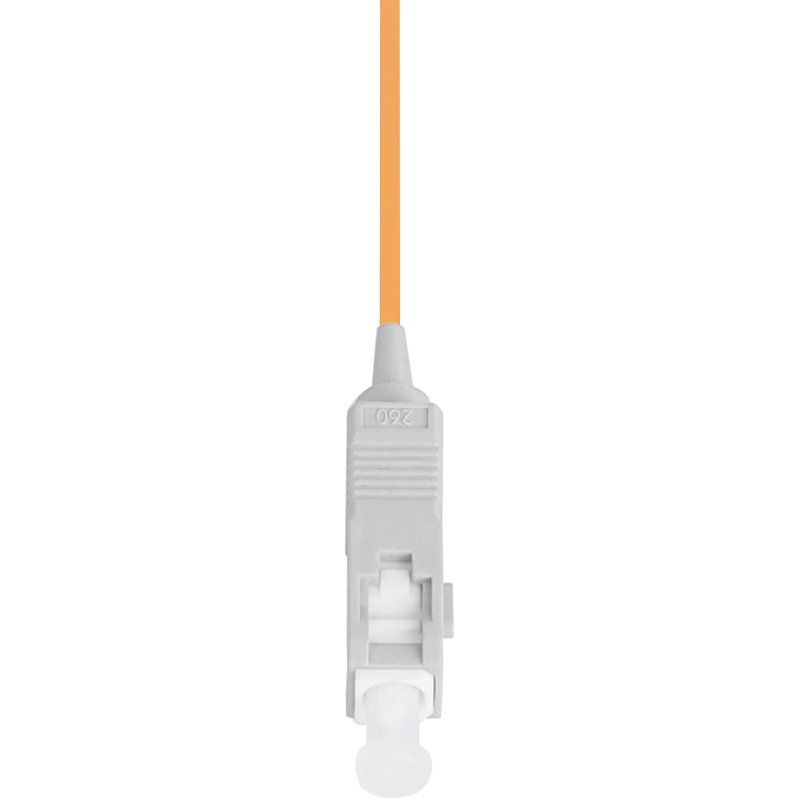

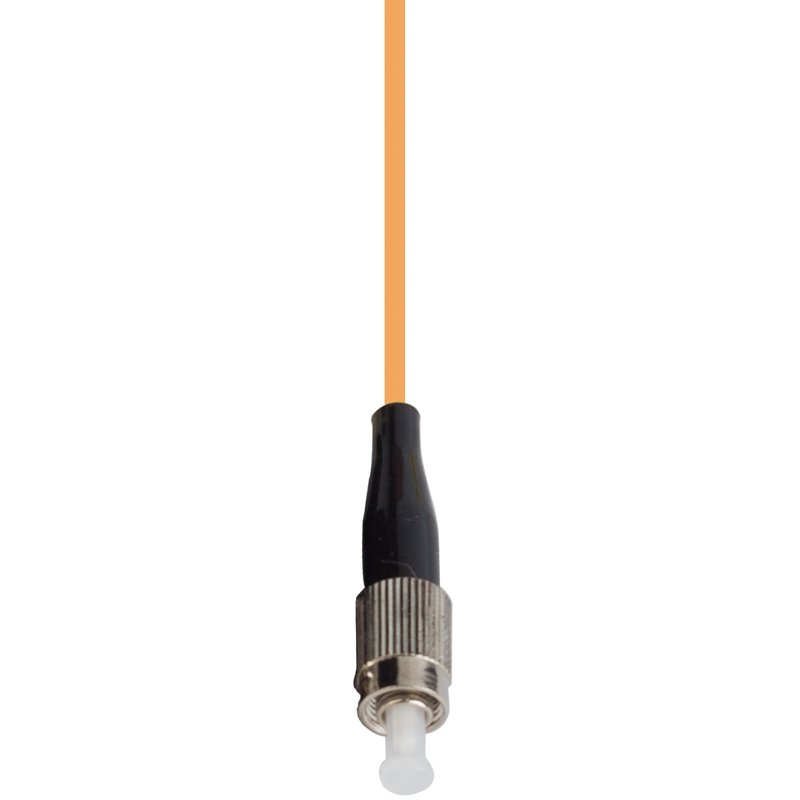

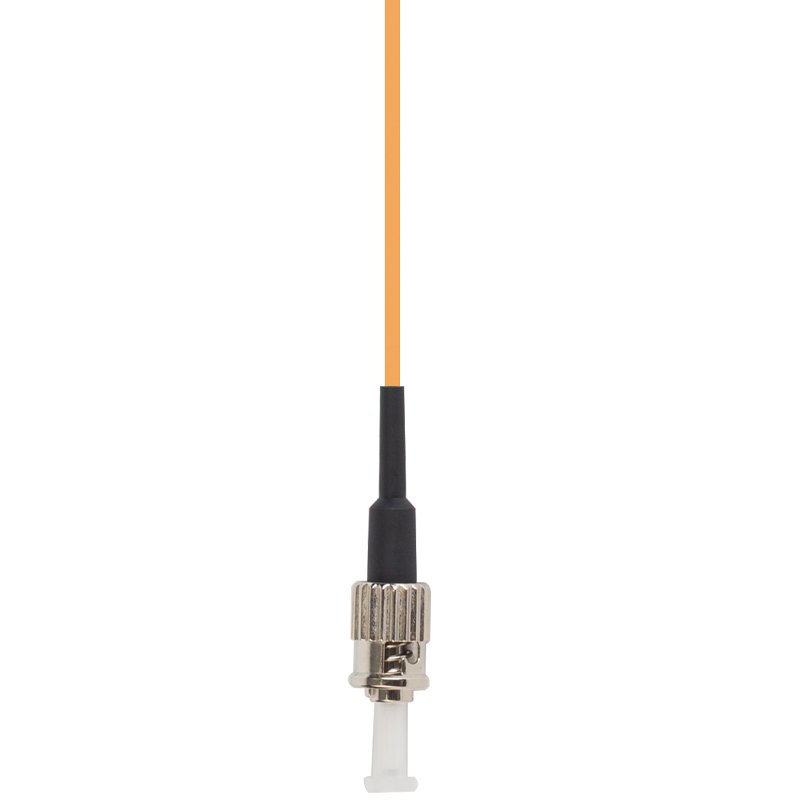

Connector LC / SC / FC / ST DUBLEX       Singlemode
Polishing           UPC
Return loss           > 55 dB
Insertion loss           < 0.25 dB (IEC Grade B )
Length           1.5 m / 2.0 m
Sheath material           LSZH, UL-94 V0
Ferrule material           Ceramic (zirconia)
Ferrule diameter           1,25mm / 2,5 mm
Temperature range         -20°C +70°C
Outer diameter           900±5 μm
Bending radius (static)         30 mm
Attenuation @ 850 / 1300 nm (dB/km)
Attenuation @ 1310 / 1383 / 1550 nm (dB/km)     ≤ 0,4 / ≤ 0,4 / ≤ 0,4
Bandwidth 850 / 1300 nm (MHz.km)

OM1 Pigtail standard length is 1m and 1.5 meters, production can be provided in the desired length.

OM1 Pigtail is LSZH.

OM1 Pigtail's color is orange.
